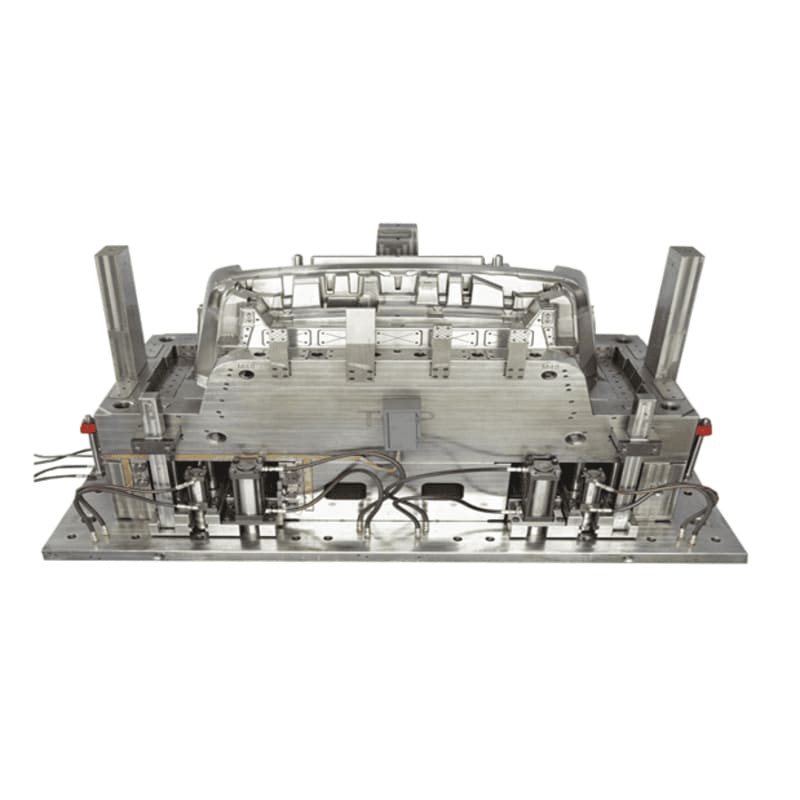

Automotive Bumper Mould – High-Precision Exterior Injection Tooling
The Automotive Bumper Mould is engineered for the high-volume production of front and rear bumpers on passenger vehicles. It achieves class-A surface finishes, tight dimensional tolerances, and impact-resistant strength to meet stringent OEM requirements in Europe and North America. Designed for large-tonnage presses (1,200–2,500 T), this tooling balances aesthetic demands with robust performance and longevity.
Engineering & Design Excellence
• Full DFM Analysis: Gate locations, parting lines, wall-thickness uniformity and runner balance are optimized to prevent sink marks and warpage on long, thin-walled surfaces.
• Moldflow Simulation: Validates melt flow, cooling efficiency, and minimization of weld-lines across the bumper geometry.
• CAD/CAM Integration: Parametric 3D models in UG/CATIA ensure precision fit of every insert and slider, guaranteeing stable operation under high clamp forces.
Mould Structure & Craftsmanship
• Two-Plate Large Mold Base: Suited for 1,500–2,500 T injection machines.
• Hot Runner System: Multi-point valve-gate ensures even filling and high-gloss finish.
• Precision Cooling: Conformal and parallel cooling circuits maintain thermal uniformity, reducing cycle time and deformation.
• Replaceable Inserts: Quick-change mold inserts for front/rear variants enhance versatility and maintenance speed.
• High-Strength Steel: Core/cavity made from ASSAB 8407 + 2316, delivering excellent wear resistance and a service life of over one million cycles.
Technical Challenges & Solutions
• Large Flow Distance: Customized runner layouts and balanced gate pressures eliminate short-shots and hesitation points.
• Surface Quality: Mirror polishing on flow paths, controlled texturing on visible areas for flawless class-A surfaces.
• Warpage Control: Advanced cooling design plus balanced ejection pins reduce distortion on expansive panels.
• Cycle-Time Optimization: Streamlined ejection and optimized cooling decrease cycle time by ~18% without sacrificing quality.
Production & Quality Assurance
Each mould undergoes multiple trial runs (T0–T3), with the following deliverables:
• 2D/3D CAD data and steel-certification reports
• DFM & Moldflow analysis reports
• CMM-based dimensional inspection reports
• Trial-run videos and part-fit testing records
• Full maintenance guide and spare-parts kit
Applications & Market Value
Automotive bumpers are critical exterior components that:
• Provide impact absorption to protect vehicle occupants
• Define front/rear styling with seamless, high-gloss surfaces
• Integrate functional elements such as sensor brackets and air guides
• Demand repeatable fitment and dimensional stability across millions of parts
Why Choose Our Automotive Mould Factory?
As a leading large-car mould maker, CINDY Mould (formerly JY Mould) specializes in automotive exterior tooling. Our expertise in bumper injection mould design delivers:
• Industry-leading surface quality and durability
• Rapid iteration from DFM to production sign-off
• End-to-end project management, from design through global logistics
Contact Us
Email: selina@jy-mould.com
Phone: +8618969686504
Website: www.cindymould.com
Partner with us for automotive bumper moulds that combine beauty, precision, and performance—backed by full documentation and world-class quality assurance.
